H3c S5024P二层交换机对接S5100三层配置记录

S5100三层交换机配置:

<H3C>dis cu
#
 sysname H3C
#
radius scheme system
#
domain system
#
local-user admin
 password simple admin
 service-type telnet
 level 3
#
dhcp server ip-pool vlan91
 network 192.168.91.0 mask 255.255.255.0
 gateway-list 192.168.91.1
 dns-list 119.29.29.29 114.114.114.114
#
dhcp server ip-pool vlan92
 network 192.168.92.0 mask 255.255.255.0
 gateway-list 192.168.92.1
 dns-list 119.29.29.29 114.114.114.114
#
vlan 1
#
vlan 91 to 92
#
vlan 100
#
interface Vlan-interface91
 ip address 192.168.91.1 255.255.255.0
#
interface Vlan-interface92
 ip address 192.168.92.1 255.255.255.0
#
interface Vlan-interface100
 ip address 192.168.90.254 255.255.255.0
#
interface Aux1/0/0
#
interface GigabitEthernet1/0/1
 port access vlan 100
#
interface GigabitEthernet1/0/2
 port access vlan 91
#
interface GigabitEthernet1/0/3
 port access vlan 91
#
interface GigabitEthernet1/0/4
 port access vlan 91
#
interface GigabitEthernet1/0/5
 port access vlan 91
#
interface GigabitEthernet1/0/6
 port access vlan 91
#
interface GigabitEthernet1/0/7
 port access vlan 91
#
interface GigabitEthernet1/0/8
 port access vlan 92
#
interface GigabitEthernet1/0/9
 port access vlan 92
#
interface GigabitEthernet1/0/10
 port access vlan 92
#
interface GigabitEthernet1/0/11
 port access vlan 92
#
interface GigabitEthernet1/0/12
 port access vlan 92
#
interface GigabitEthernet1/0/13
 port access vlan 92
#
interface GigabitEthernet1/0/14
 port access vlan 92
#
interface GigabitEthernet1/0/15
 port access vlan 92
#
interface GigabitEthernet1/0/16
 port link-type trunk
 port trunk permit vlan all
#
interface GigabitEthernet1/0/17
 shutdown
 port access vlan 92
#
interface GigabitEthernet1/0/18
 port link-type trunk
 port trunk permit vlan all
 shutdown
#
interface GigabitEthernet1/0/19
 shutdown
 port access vlan 92
#
interface GigabitEthernet1/0/20
 shutdown
 port access vlan 92
#
interface NULL0
#
 ip route-static 0.0.0.0 0.0.0.0 192.168.90.1 preference 60
#
user-interface aux 0
user-interface vty 0 4
 user privilege level 3
 set authentication password simple h3c001@
#
return


S5042P-EI二层交换机配置:

一些操作备注:
取消默认管理vlan了:输入“undo interface vlan-interface 1”以及“undo management-vlan”
创建了vlan 100,将新建的VLAN设置成管理VLAN,在VLAN模式下,输入“management-vlan 100”
添加 Web 用户,用户级别设为 3(管理级用户)
[H3C] local-user admin(设置用户名为 admin)
[H3C-luser-admin] service-type telnet level 3
(设置级别 3)
[H3C-luser-admin] password simple h3c001@(设置
密码 h3c001)

<H3C>dis cu
#
 Product Version S5024P-EIV100R004
#
 sysname H3C
#
hardware-failure-detection board warning
#
local-user admin
 service-type telnet
 service-type web
#
radius scheme system
#
#
vlan 1
#
vlan 91 to 92
#
vlan 100
#
interface vlan-interface100
 ip address 192.168.90.253 255.255.255.0
 ip gateway 192.168.90.254
#
#
interface GigabitEthernet0/1
 port link-type trunk
 port trunk permit vlan all
#
interface GigabitEthernet0/2
 port access vlan 91
#
interface GigabitEthernet0/3
 port access vlan 91
#
interface GigabitEthernet0/4
 port access vlan 91
#
interface GigabitEthernet0/5
 port access vlan 91
#
interface GigabitEthernet0/6
 port access vlan 91
#
interface GigabitEthernet0/7
 port access vlan 91
#
interface GigabitEthernet0/8
 port access vlan 91
#
interface GigabitEthernet0/9
 port access vlan 91
#
interface GigabitEthernet0/10
 port access vlan 91
#
interface GigabitEthernet0/11
 port access vlan 91
#
interface GigabitEthernet0/12
 port access vlan 92
#
interface GigabitEthernet0/13
 port access vlan 92
#
interface GigabitEthernet0/14
 port access vlan 92
#
interface GigabitEthernet0/15
 port access vlan 92
#
interface GigabitEthernet0/16
 port access vlan 92
#
interface GigabitEthernet0/17
 port access vlan 92
#
interface GigabitEthernet0/18
 port access vlan 92
#
interface GigabitEthernet0/19
 port access vlan 92
#
interface GigabitEthernet0/20
 port access vlan 92
#
interface GigabitEthernet0/21
 port access vlan 92
#
interface GigabitEthernet0/22
 port access vlan 92
#
interface GigabitEthernet0/23
 port access vlan 92
#
interface GigabitEthernet0/24
 port access vlan 100
#
user-interface aux 0
user-interface vty 0
user-interface vty 1
#

主防火墙华为USG2130配置:

<USG2100>dis cu
17:30:47  2020/12/16
#
sysname USG2100
#
l2tp domain suffix-separator @
#
ip df-unreachables enable
#
undo firewall ipv6 session link-state check
firewall ipv6 statistic system enable
#
dns resolve
dns server unnumbered interface Ethernet0/0/0
#
vlan batch 1
#
firewall statistic system enable
#
pki certificate access-control-policy default permit
#
dns proxy enable
#
license-server domain lic.huawei.com
#
web-manager enable
web-manager security enable port 8443
undo web-manager config-guide enable
#
user-manage web-authentication security port 8888
#
l2fwdfast enable
#
interface Vlanif1
 ip address 192.168.90.1 255.255.255.0
 service-manage enable
 service-manage http permit
 service-manage https permit
 service-manage ping permit
 service-manage ssh permit
 service-manage telnet permit
#
interface Cellular5/0/0
 link-protocol ppp
#
interface Ethernet0/0/0
 alias WAN
 dhcp client enable
 nat enable
 detect ftp
#
interface Ethernet1/0/0
 portswitch
 port link-type access
#
interface Ethernet1/0/1
 portswitch
 port link-type access
#
interface Ethernet1/0/2
 portswitch
 port link-type access
#
interface Ethernet1/0/3
 portswitch
 port link-type access
#
interface Ethernet1/0/4
 portswitch
 port link-type access
#
interface Ethernet1/0/5
 portswitch
 port link-type access
#
interface Ethernet1/0/6
 portswitch
 port link-type access
#
interface Ethernet1/0/7
 portswitch
 port link-type access
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 detect ftp
 detect rtsp
 detect pptp
 add interface Ethernet1/0/0
 add interface Ethernet1/0/1
 add interface Ethernet1/0/2
 add interface Ethernet1/0/3
 add interface Ethernet1/0/4
 add interface Ethernet1/0/5
 add interface Ethernet1/0/6
 add interface Ethernet1/0/7
 add interface Vlanif1
#
firewall zone untrust
 set priority 5
 detect ftp
 detect rtsp
 detect pptp
 add interface Ethernet0/0/0
#
firewall zone dmz
 set priority 50
 detect ftp
 detect rtsp
 detect pptp
#
firewall interzone local trust
 detect ftp
 detect pptp
 detect rtsp
#
firewall interzone local untrust
 detect ftp
 detect pptp
 detect rtsp
#
firewall interzone local dmz
 detect ftp
 detect pptp
 detect rtsp
#
firewall interzone trust untrust
 detect ftp
 detect pptp
 detect rtsp
#
firewall interzone trust dmz
 detect ftp
 detect pptp
 detect rtsp
#
firewall interzone dmz untrust
 detect ftp
 detect pptp
 detect rtsp
#
#
aaa
 local-user admin password irreversible-cipher %@%@d+LM,~(yE1zu8DBmH)@S<`WNm0PzHCEHb$(<#pK/'^(~|f]X%@%@
 local-user admin service-type web terminal telnet
 local-user admin level 15
 authentication-scheme default
 #
 authorization-scheme default
 #
 accounting-scheme default
 #
 domain default
 domain dot1x
 #
#
nqa-jitter tag-version 1

#
ip route-static 0.0.0.0 0.0.0.0 192.168.2.254 preference 245
ip route-static 192.168.91.0 255.255.255.0 192.168.90.254
ip route-static 192.168.92.0 255.255.255.0 192.168.90.254
#
banner enable
#
user-interface con 0
user-interface tty 2
 modem both
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound all
#
sa
#
slb
#
cwmp
#
right-manager server-group
#
return

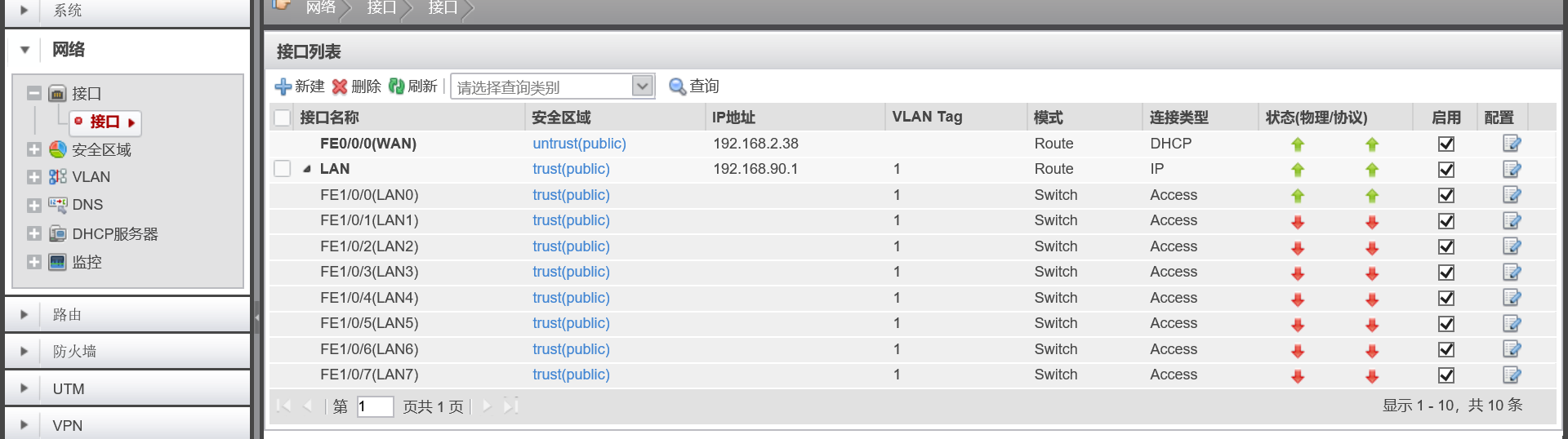

接口
静态路由表
